Type: Inline connection blockThread: 1/4"Compatible with: HAWE CDK 3Max pressure: up to 500 bar (depending on valve)Max flow: up to 22 l/min (CDK 3)
106,86 €
PACK KYLE press TUBOMATIC H47PM OR+P (max Ø 46 mm) with fittings and hose
PACK KYLE composed by press TUBH47PM (max Ø 46 mm) with fittings and hose.
1 567,60 €
PACK KENNY press TUBOMATIC H47E OR+P (max Ø 46 mm) with fittings and hose
PACK KENNY composed by press TUBH47E (max Ø 46 mm) with fittings and hose.
1 567,60 €
Racor T/L-MF JIC/BSPP 1"1/16-3/4"
13,70 €
188,42 €

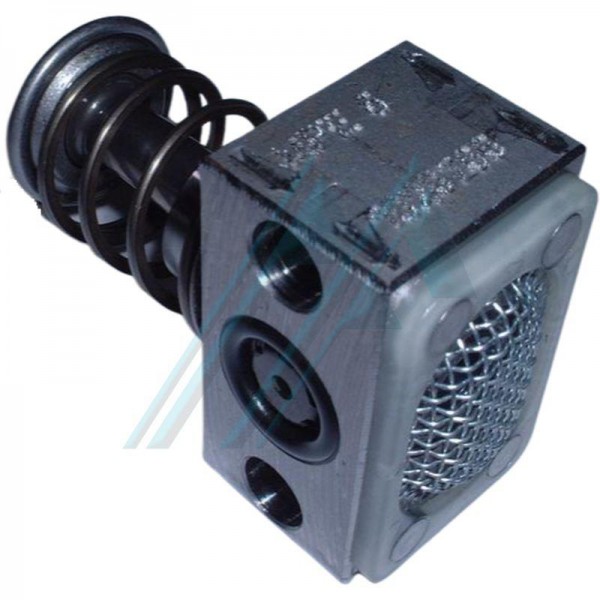

PE pump elements supply hydraulic lubricating fluids and at the same time generate a back pressure against the working resistance of a connected element.
They are the basic module of all Hawe radial piston pumps.
Availability : En stock, normalmente enviado en un día laboral
PE6
- Pump elements type MPE and PE are the basic module of all Hawe radial piston pumps.
- With compatible pump elements and drive parts, high-pressure pumps can be built to meet different requirements.
- Properties and advantages:
Individual supply.
Universal use.
Suitable for high pressures up to 700 bar.
-Scope of application:
Machine tools.
Workholding devices
Hydraulic tools
CHARACTERISTICS:
Piston volume Ø: 6
Displacement volume Vg (cm3/turn): 0,21
Flow rate Q (l/min): 0.3 (1450 rpm) and 0.6 (2850 rpm).
Piston force in stroke direction per 1 bar (N): 2.83
Power demand per 100 bar (kW):
- 1450 rpm: 0.055 k.
- 2850 rpm: 0.12 k.
Pmax (bar): 700 bar.
Max. P (bar): 330
