Type: Inline connection blockThread: 1/4"Compatible with: HAWE CDK 3Max pressure: up to 500 bar (depending on valve)Max flow: up to 22 l/min (CDK 3)
106,86 €
PACK KYLE press TUBOMATIC H47PM OR+P (max Ø 46 mm) with fittings and hose
PACK KYLE composed by press TUBH47PM (max Ø 46 mm) with fittings and hose.
1 567,60 €
PACK KENNY press TUBOMATIC H47E OR+P (max Ø 46 mm) with fittings and hose
PACK KENNY composed by press TUBH47E (max Ø 46 mm) with fittings and hose.
1 567,60 €
Racor T/L-MF JIC/BSPP 1"1/16-3/4"
13,70 €
188,42 €
Flow l / min | MODEL | No. of pistons | Piston Ø (mm) | Drive power Kw | |

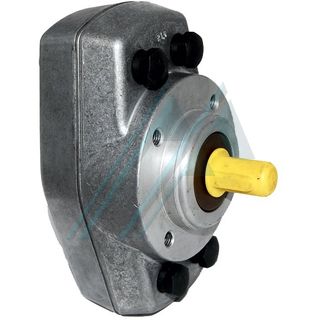

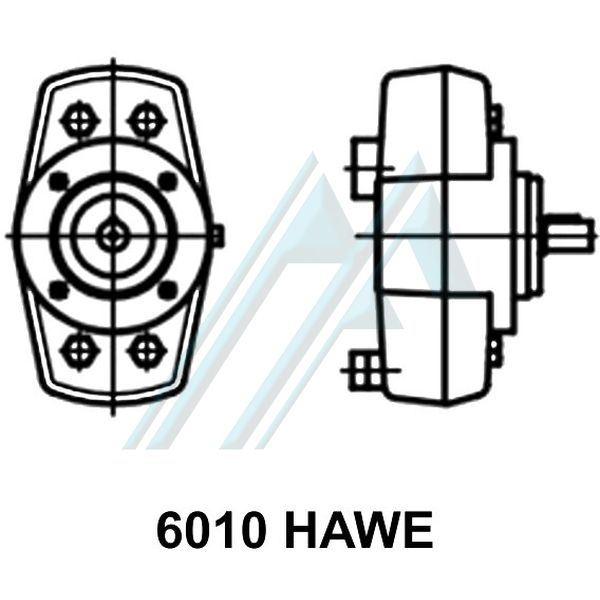

| 1.45 | 6010 1, 2 and 3 piston pump |  | 1 | 13 | 0.25 to 2.2 |
| 2.8 | two | ||||
| 4.3 | 3 | 0.25 to 3 | |||

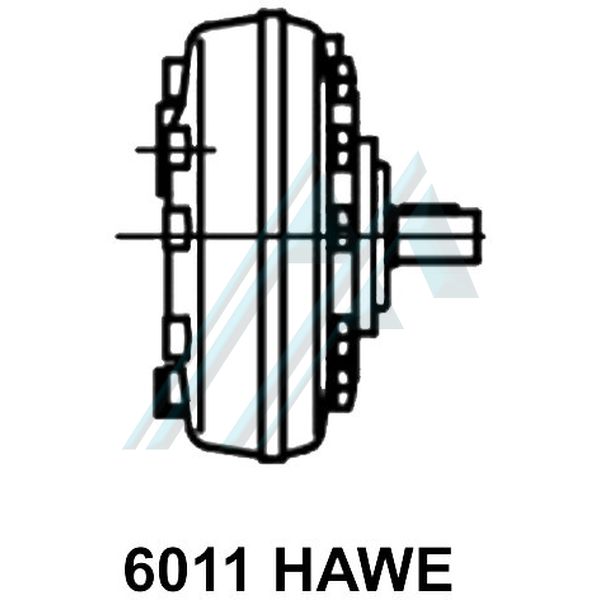

| 7.0 | 6011 Simple star bomb |  | 5 | 13 | 0.25 to 4 |
| 9.8 | 7 | 0.55 to 5.5 | |||
| 14.2 | 6012 Double star pump |  | 10 | 13 | 2.2 to 7.5 |
| 20.0 | 14 | 2.2 to 11 | |||

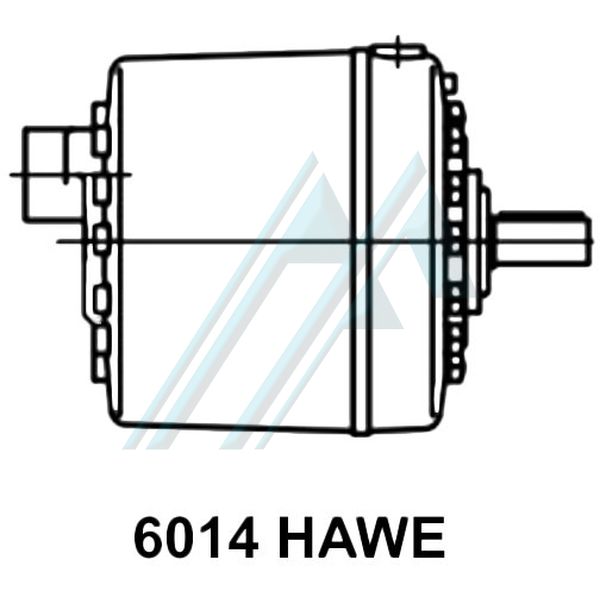

| 30.0 | 6014 Four star bomb |  | twenty | 13 | 5.5 to 18.5 |
| 40.0 | 28 | 5.5 to 22 | |||
| 60.0 | 6016 Six star bomb |  | 42 | 13 | 11 to 30 |
When the action time of the charge oscillates between 75 and 10% in successive work cycles (for example the accumulator charging service or similar), it is advisable not to use the maximum operating pressure allowed if you want to take into account bearing life. It is better to choose a pump with a similar displacement, but the next size of the model.
