Type: Inline connection blockThread: 1/4"Compatible with: HAWE CDK 3Max pressure: up to 500 bar (depending on valve)Max flow: up to 22 l/min (CDK 3)
106,86 €
PACK KYLE press TUBOMATIC H47PM OR+P (max Ø 46 mm) with fittings and hose
PACK KYLE composed by press TUBH47PM (max Ø 46 mm) with fittings and hose.
1 567,60 €
PACK KENNY press TUBOMATIC H47E OR+P (max Ø 46 mm) with fittings and hose
PACK KENNY composed by press TUBH47E (max Ø 46 mm) with fittings and hose.
1 567,60 €
Racor T/L-MF JIC/BSPP 1"1/16-3/4"
13,70 €
188,42 €

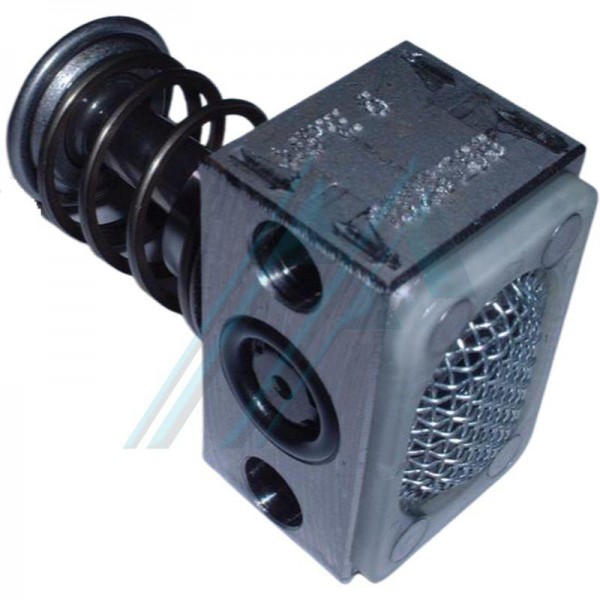

PE pump elements supply lubricating hydraulic fluids and at the same time generate a back pressure against the working resistance of a connected element.
They are the basic module of all Hawe radial piston pumps.
Availability : En stock, normalmente enviado en un día laboral
MPE4
- The pump elements of the type MPE and PE are the basic module of all Hawe radial piston pumps.
- With compatible pump elements and drive parts, high-pressure pumps can be built to meet different needs.
- Properties and advantages:
Single supply.
Universal use.
Suitable for high pressures up to 700 bar.
-Area of application:
Machine tools.
Devices for holding pieces.
Hydraulic tools.
CHARACTERISTICS:
Piston volume Ø: 4.
Displacement volume Vg (cm3/rev): 0.062.
Flow Q (l/min): 0.09 (1,450 rpm) and 0.18 (2,850 rpm).
Piston force in the direction of stroke per 1 bar (N): 1.26
Power demand per 100 bar (kW):
1450rpm: 0.018k
2850rpm: 0.033k
Pmax (bar): 700 bar.
