Adapter male JIC thread 1"5/8 to male thread 1"7/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
25,88 €
Adapter male JIC thread 1"5/8 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
18,17 €
Adapter male JIC thread 1"5/8 to male thread 1"5/16 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
23,08 €
Adapter male JIC thread 1"5/16 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
52,17 €
90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €
Flow l / min | MODEL | No. of pistons | Piston Ø (mm) | Drive power Kw | |

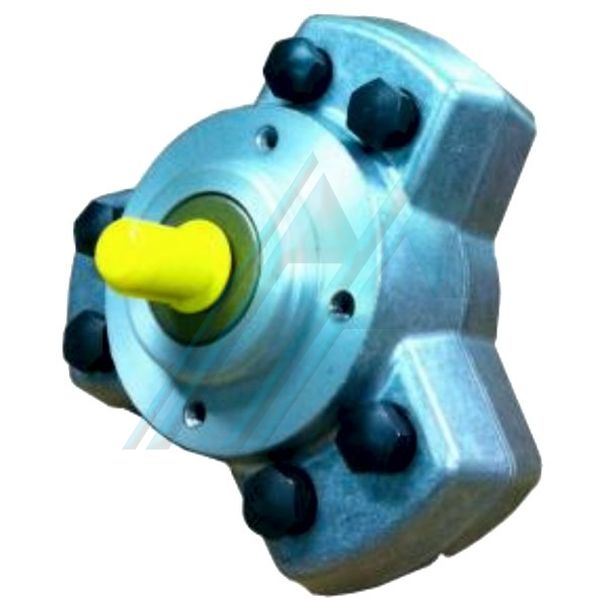

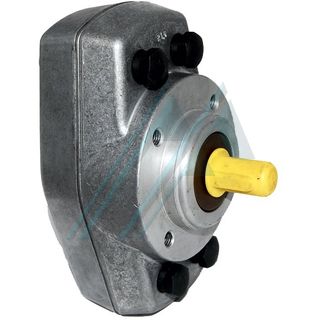

1.9 | 6010 1, 2 and 3 piston pump | 1 | fifteen | 0.25 to 2.2 | |
3.8 | 2 | ||||
5.6 | 3 | 0.25 to 3 | |||

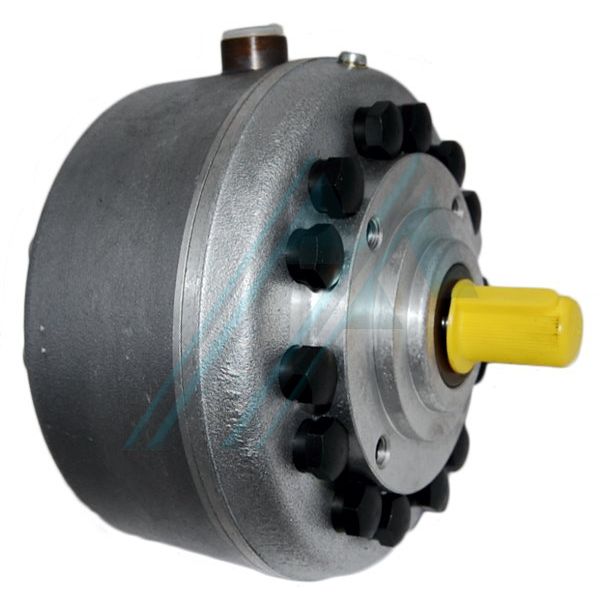

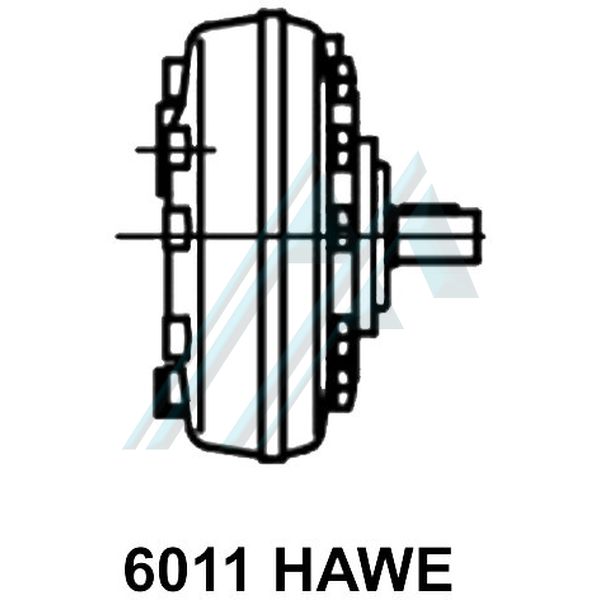

9.5 | 6011 Simple star bomb | 5 | fifteen | 0.25 to 4 | |
13.3 | 7 | 0.55 to 5.5 | |||

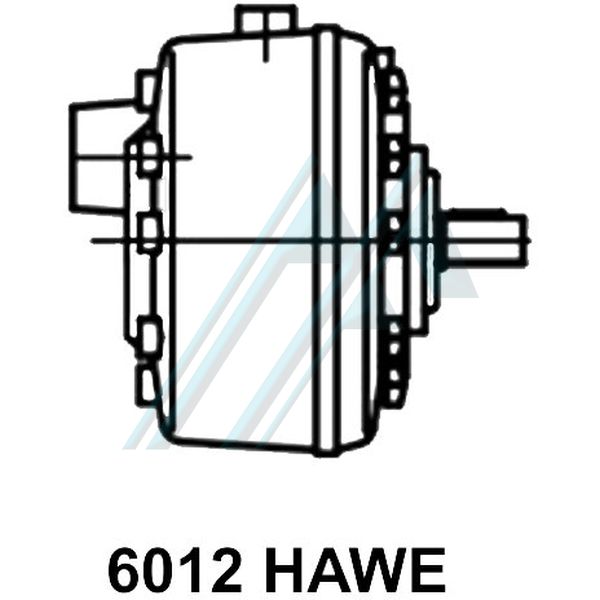

19.3 | 6012 Double star pump | 10 | fifteen | 2.2 to 7.5 | |
26.5 | 14 | 2.2 to 11 | |||
30.0 | 6014 Four star bomb | twenty | fifteen | 5.5 to 18.5 | |
40.0 | 28 | 5.5 to 22 | |||

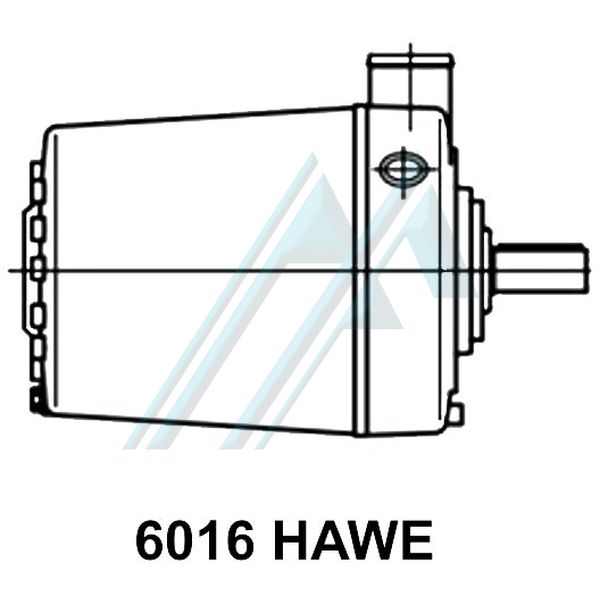

60.0 | 6016 Six star bomb | 42 | fifteen | 11 to 30 |
When the action time of the charge oscillates between 75 and 10% in successive work cycles (for example the accumulator charging service or similar), it is advisable not to use the maximum operating pressure allowed if you want to take into account bearing life. It is better to choose a pump with a similar displacement, but the next size of the model.
