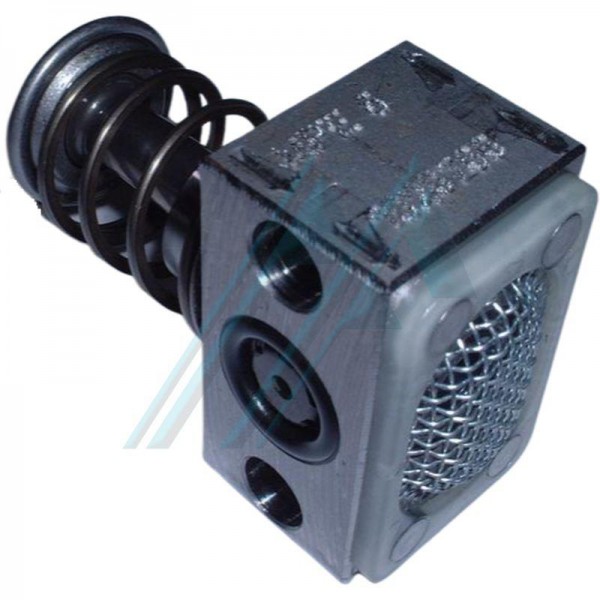

Pump piston PE 8 Hawe

Technical data sheet

.

- PE pump elements supply hydraulic lubricating fluids and at the same time generate a back pressure against the working resistance of a connected element.

- They are the basic module of all Hawe radial piston pumps.

- Pump elements type MPE and PE are the basic module of all Hawe radial piston pumps.

- With compatible pump elements and drive parts, high-pressure pumps can be constructed to meet different requirements.

- Properties and advantages:

Individual delivery.

Universal use.

Suitable for high pressures up to 700 bar.

- Range of application:

Machine tools.

Workholding devices.

Hydraulic tools.

CHARACTERISTICS:

- Piston diameter Ø: 8

- Displacement volume Vg (cm3/turn): 0,38

- Flow rate Q (l/min): 0,5 (1450 rpm) and 1,01 (2850 rpm).

- Piston force in stroke direction per 1 bar (N): 5.03

- Power demand per 100 bar (kW):

- 1450 rpm: 0.09 k.

- 2850 rpm: 0.18 k.

- Pmax (bar): 700 bar.
