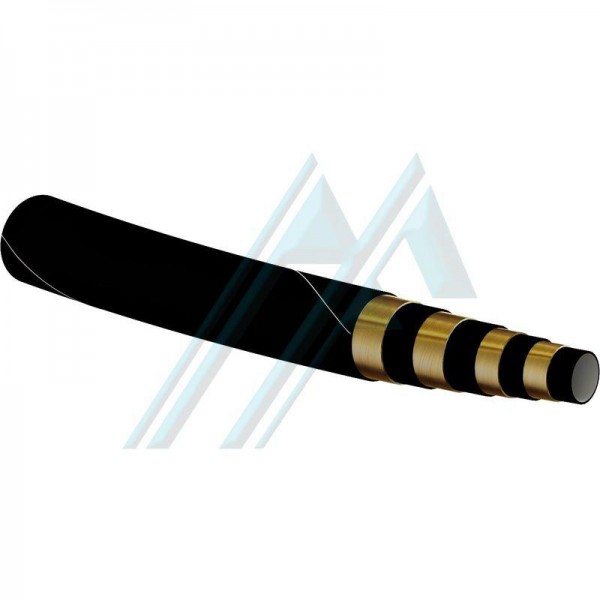

Flexible tubing 1"1/4 DIN EN 856 4SH

- Hydraulic hose reinforced with 4 or 6 very high pressure steel wire spirals.

- According to ISO 3862 EN 856 / type R13 / SAE J517 type R13.

- Inner tube Ø 32,1 mm. oil resistant synthetic rubber without welding.

- Reinforcement: 4 or 6 high tensile steel wire spirals.

- Outer tube Ø 44,5 mm. synthetic rubber resistant to abrasion, weather and oil.

- Working pressure 350 Bar.

- Burst pressure 1400 Bar.

- Safety factor: 4:1.

- Application: petroleum based hydraulic fluids.

- Temperature range: -40°C (-40°F) +100°C (+212°F); Intermittent service: +120°C (+248°F).

- Max. recommended temperature for water-based hydraulic fluids: +70°C (+158°F).

Max. recommended temperature for air: +60°C (+140°F).
